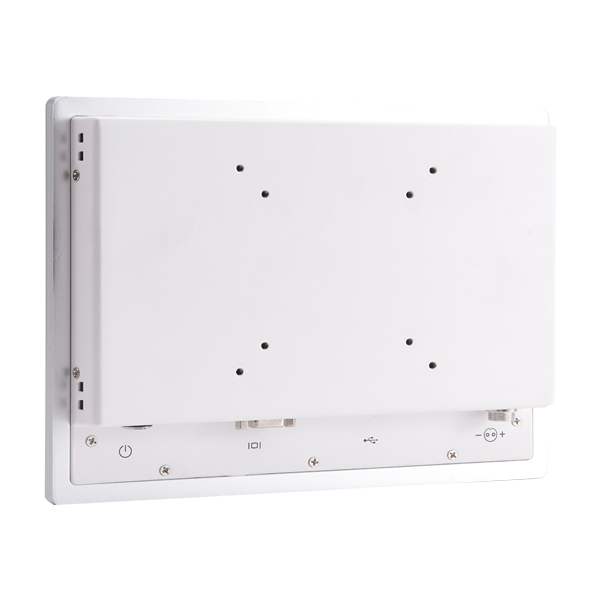

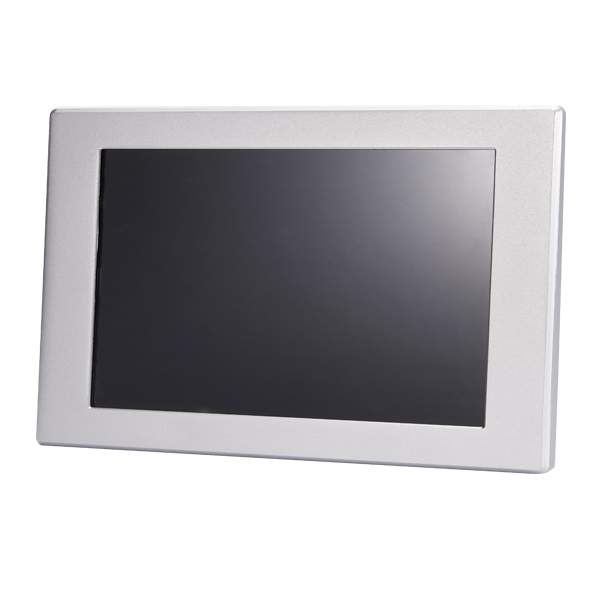

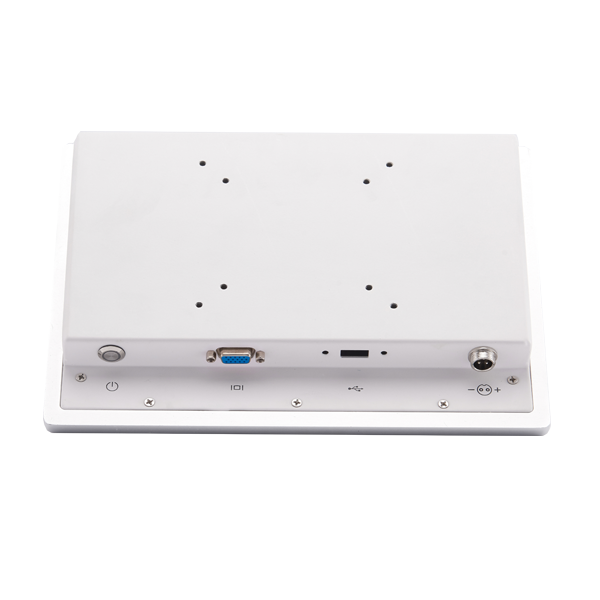

PPM-H10RT 10.4" Resistive Touch Screen Industrial Monitor

●10.4"LCD Screen with LED backlight, Resisitive Touch
●1×VGA 1×USB(RS232 Optional)
●Anti-EMI At Level 3
●Panel IP65,Waterproof And Dustproof
●Stable And Reliable Communicate

Consulting Contact us

Introduction
Specification
Ordering
Driver

Display Size	10.4"
Resolution	1024×768
Touch Screen	Resistive Touch Screen
Luminance	320cd/m2
Ratio	1000:1
Max. Colors	16.7M
Response Time	<8ms
Backlight Life	50000hrs
Viewing Angle (H/V°)	80/70/75/80
I/O	1×VGA 1×USB(RS232 Optional)
Power Supply	DC 12V Input Voltage,15W
Structure	High Strength Aviation Aluminum
Mounting	Panel,VESA Arm,Wall
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
Vibration	50 ~ 200-10 Hz, 1.5 Grms (Operating, Random)

Display Size	10.4"
Resolution	1024×768
Touch Screen	Resistive Touch Screen
Luminance	320cd/m2
Ratio	1000:1
Max. Colors	16.7M
Response Time	<8ms
Backlight Life	50000hrs
Viewing Angle (H/V°)	80/70/75/80
I/O	1×VGA 1×USB(RS232 Optional)
Power Supply	DC 12V Input Voltage,15W
Structure	High Strength Aviation Aluminum
Mounting	Panel,VESA Arm,Wall
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
Vibration	50 ~ 200-10 Hz, 1.5 Grms (Operating, Random)

Display Size	10.4"
Resolution	1024×768
Touch Screen	Resistive Touch Screen
Luminance	320cd/m2
Ratio	1000:1
Max. Colors	16.7M
Response Time	<8ms
Backlight Life	50000hrs
Viewing Angle (H/V°)	80/70/75/80
I/O	1×VGA 1×USB(RS232 Optional)
Power Supply	DC 12V Input Voltage,15W
Structure	High Strength Aviation Aluminum
Mounting	Panel,VESA Arm,Wall
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
Vibration	50 ~ 200-10 Hz, 1.5 Grms (Operating, Random)

Display Size	10.4"
Resolution	1024×768
Touch Screen	Resistive Touch Screen
Luminance	320cd/m2
Ratio	1000:1
Max. Colors	16.7M
Response Time	<8ms
Backlight Life	50000hrs
Viewing Angle (H/V°)	80/70/75/80
I/O	1×VGA 1×USB(RS232 Optional)
Power Supply	DC 12V Input Voltage,15W
Structure	High Strength Aviation Aluminum
Mounting	Panel,VESA Arm,Wall
Operating Temperature	-10℃~50℃
Storage Temperature	-20℃~60℃
Vibration	50 ~ 200-10 Hz, 1.5 Grms (Operating, Random)
